FFIM to Z33 Throttle Body Adapter

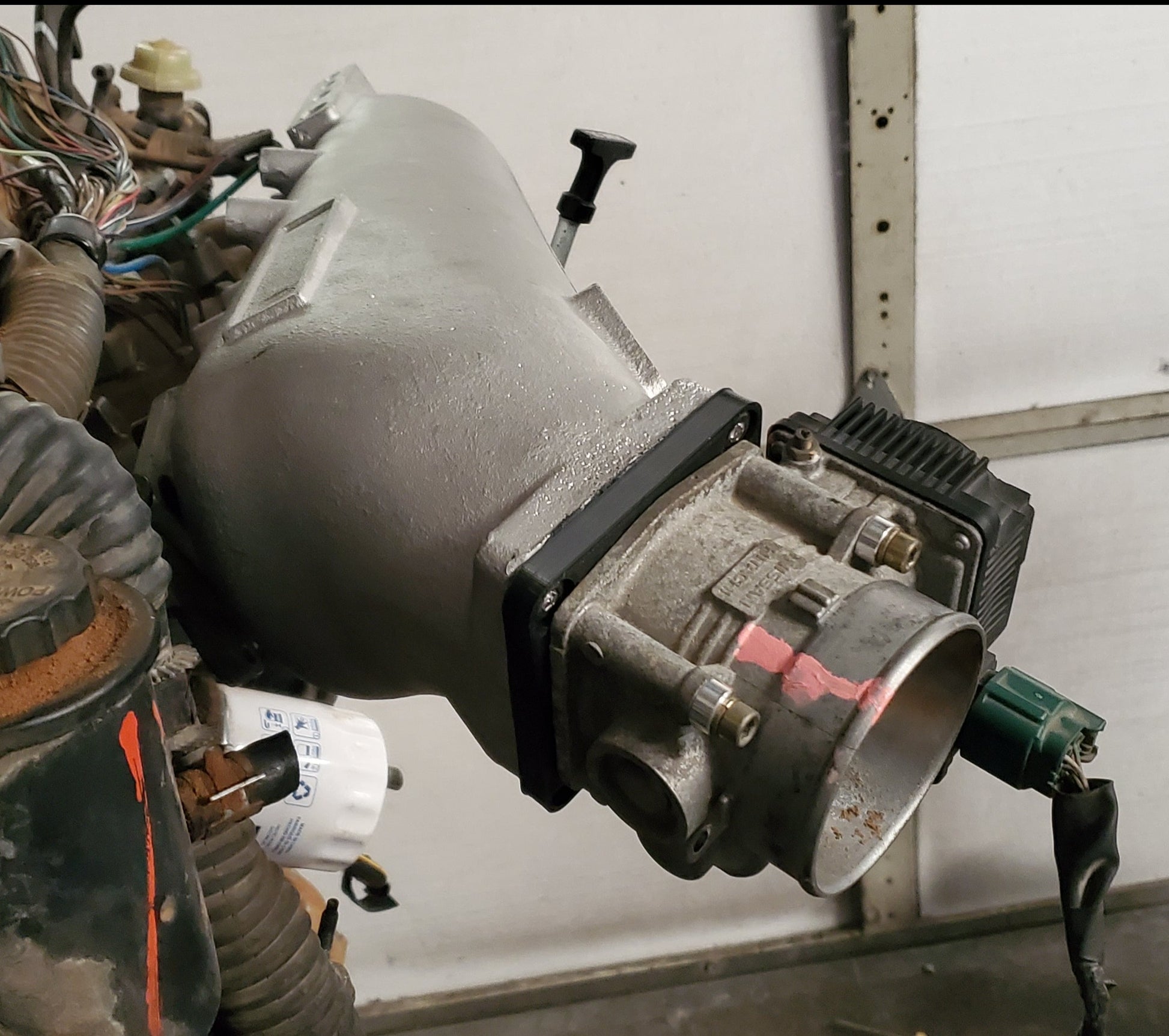

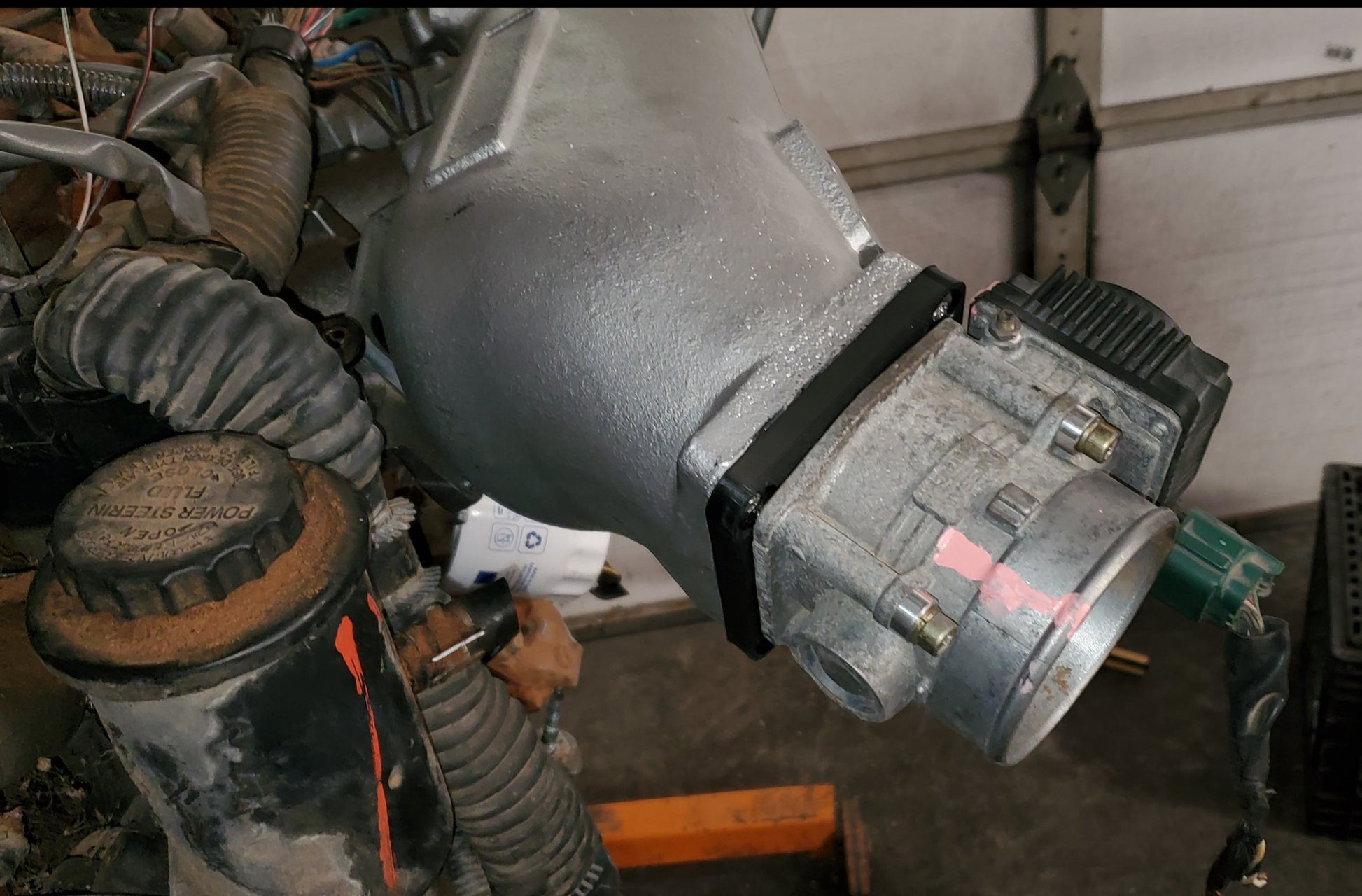

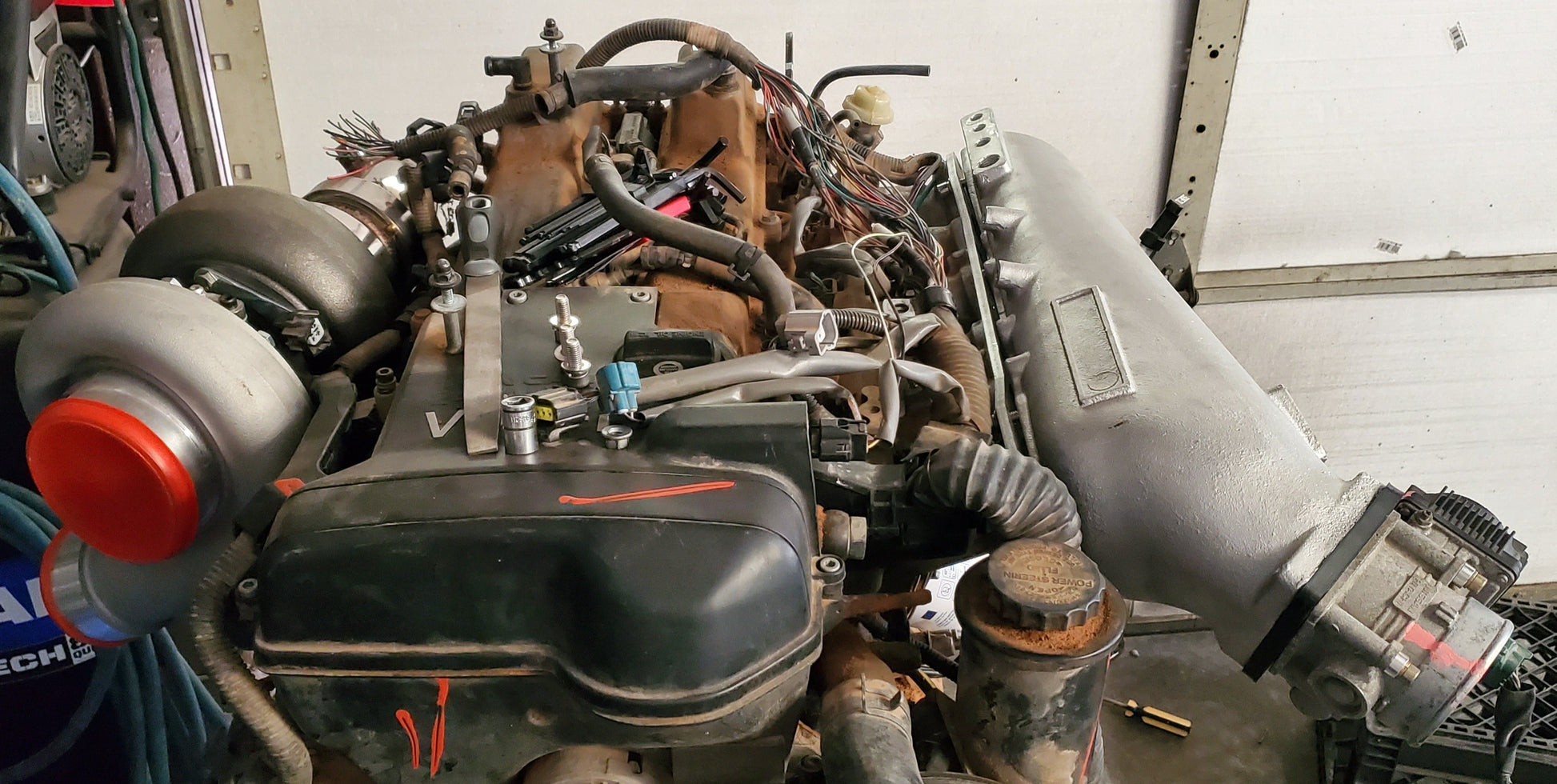

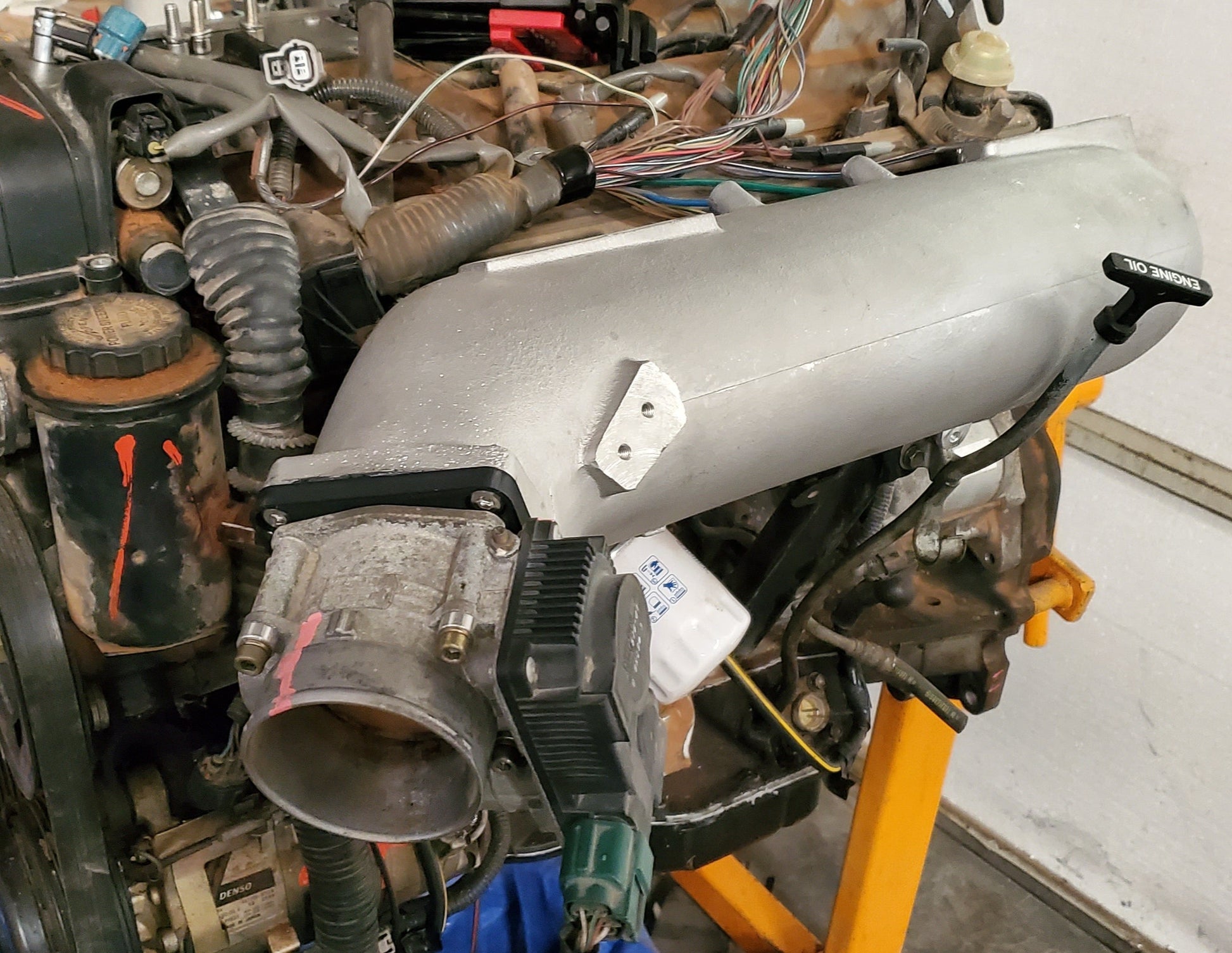

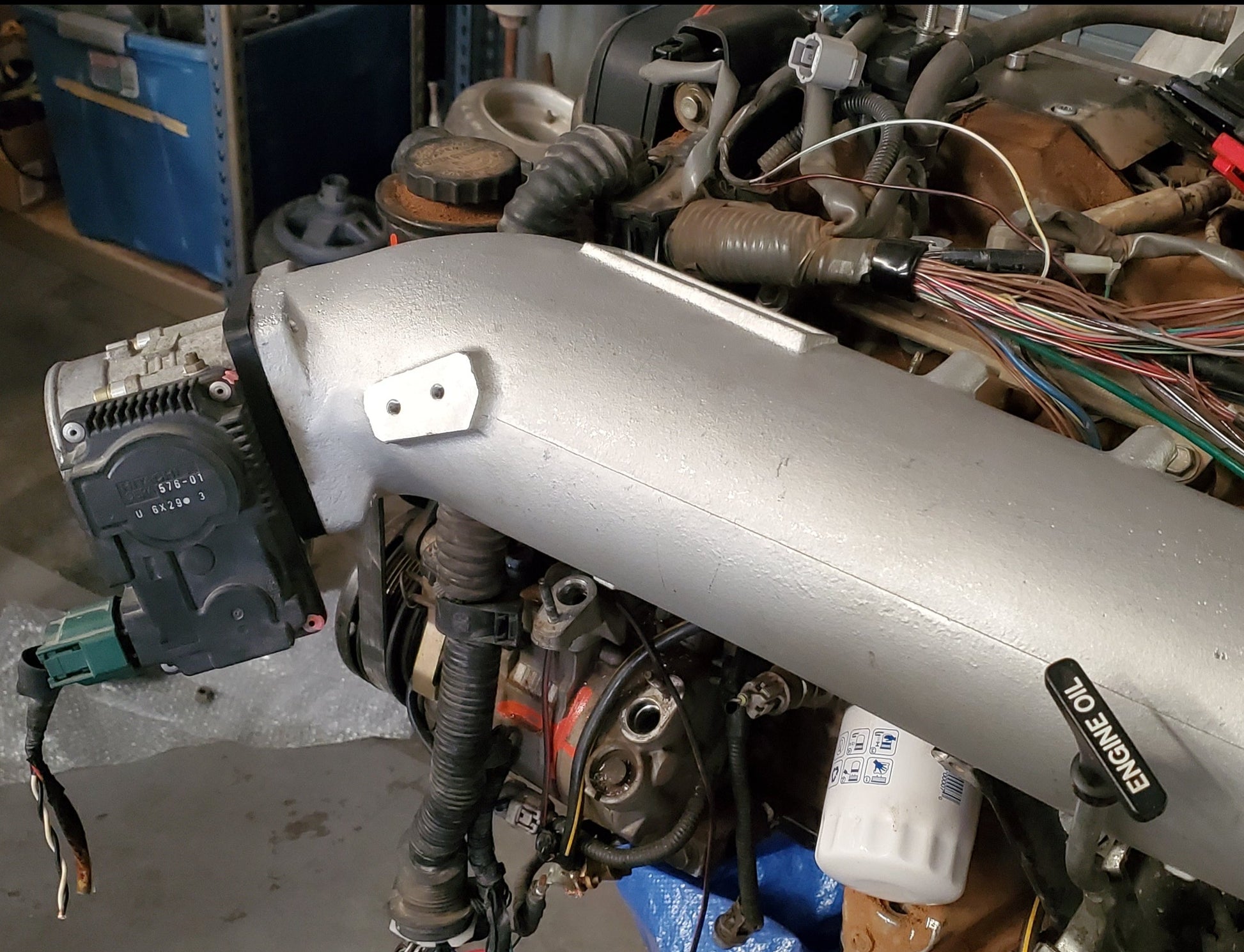

Ditch the throttle cable and run a stock Nissan 350z, Infiniti g35 throttle body on an aftermarket intake. Four bolt pattern is a symmetrical 78mm (3.07") which is a perfect fit to this cast manifold commonly found in eBay, Amazon, Aliexpress and the like for dirt cheap. Simply bolt the plate to your intake using the included hardware and intake side gasket from your intake kit, then bolt your throttle body to the plate with the factory hardware and an OEM gasket.

This throttle body is found on multiple Nissan engines and offers a cleaner drive-by-wire solution vs the stock Toyota VVTI. The diameter if the opening on the aftermarket FFIM is 78mm while this throttle body measures 74mm, making them a close match. Will require an aftermarket ECU capable of controlling electronic throttle bodies.

This plate is 3/8" thick and can be beveled to port match or used as supplied. Due to the symmetrical bolt pattern, the throttle body can be rotated in 90 degree increments which may improve clearances for some applications.

Included:

• Adapter plate (5052 Machined Aluminum)
• (4) M8 stainless Flat Head Screws

NOT Included

• Intake manifold
• Throttle Body
