2JZGE Throttle Body Adapter

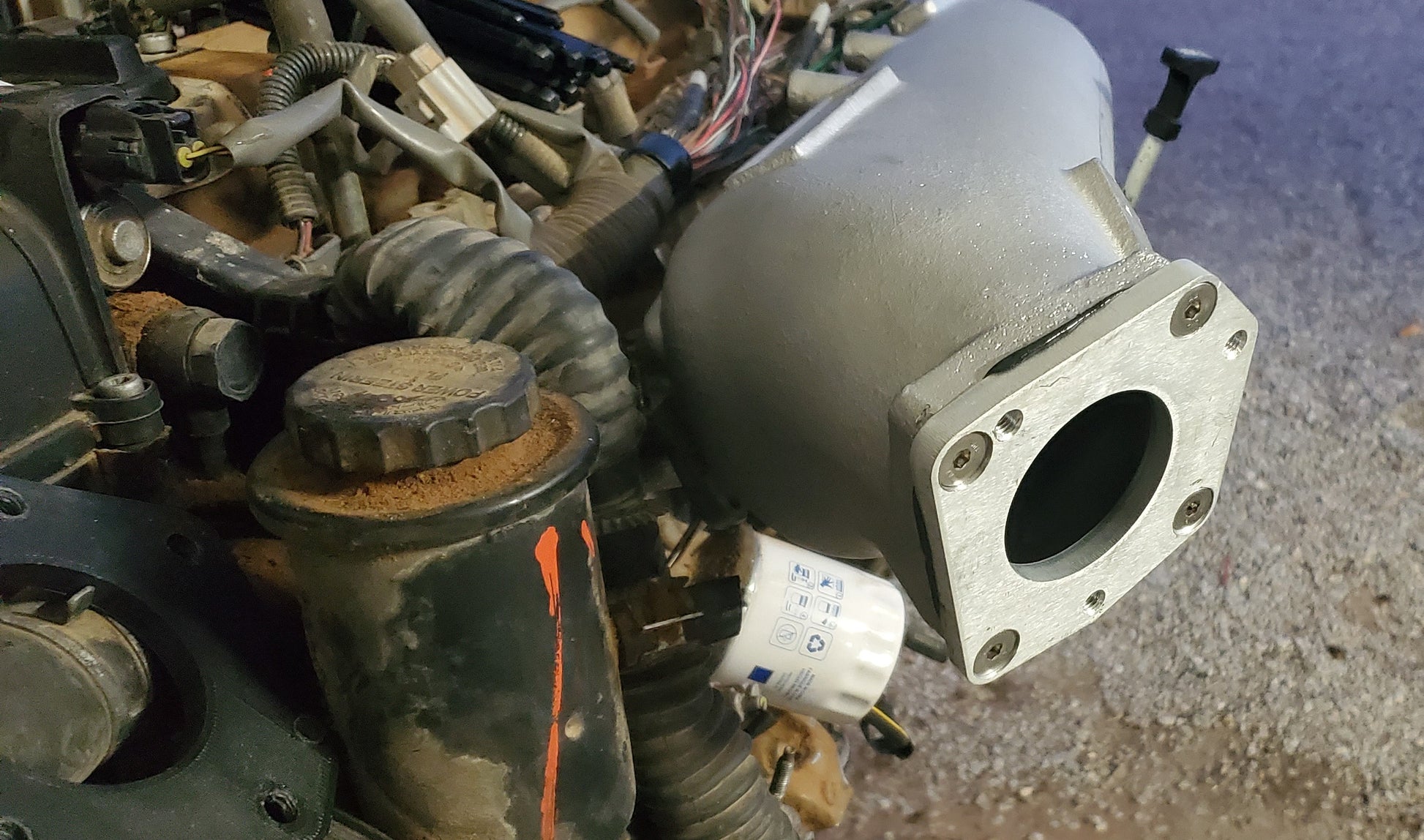

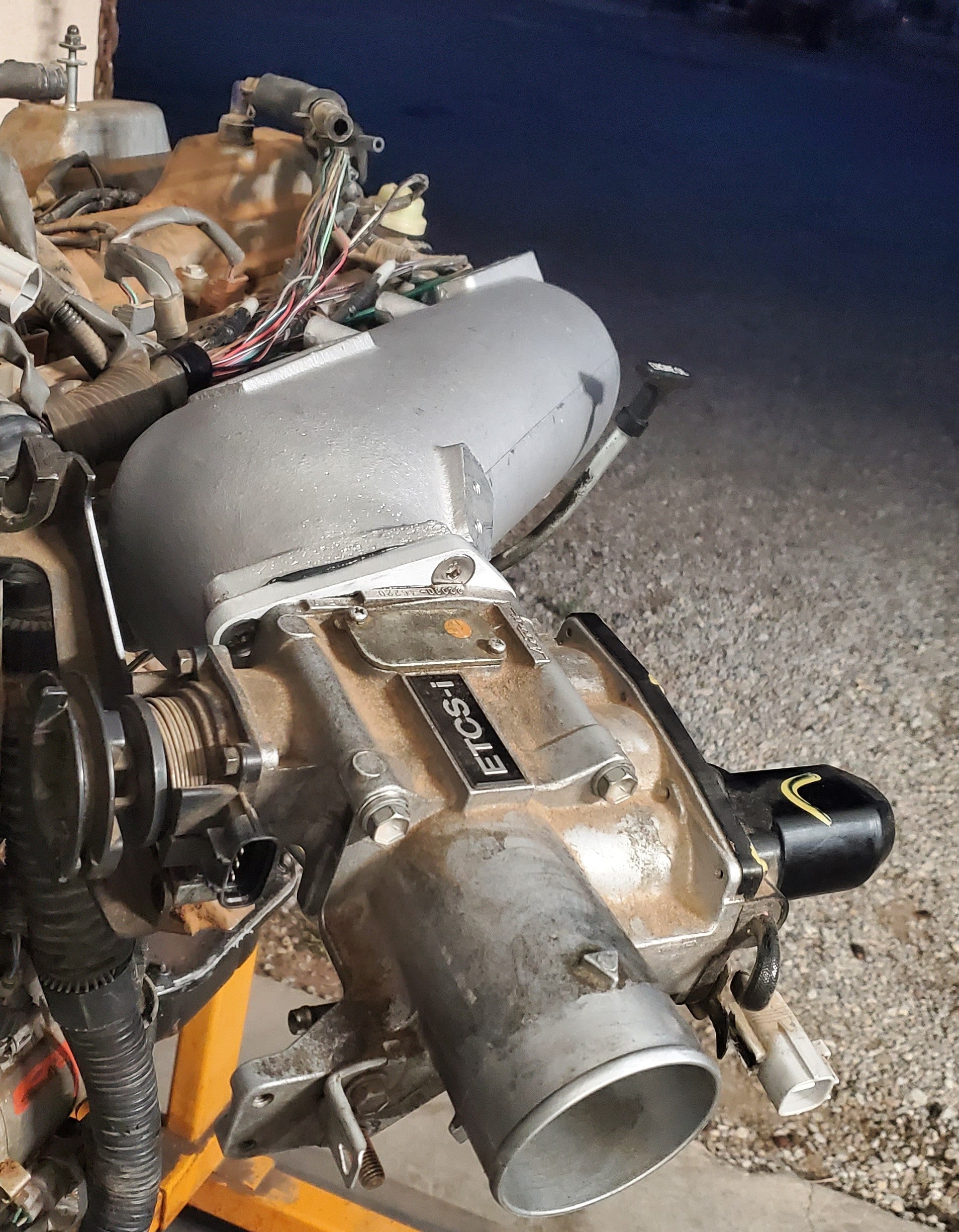

Ditch the throttle cable and run a stock, readily available Nissan 350z/ Infiniti G35 throttle body on an aftermarket intake. Four bolt pattern is a symmetrical 78mm (3.07") which is a perfect fit to this cast manifold commonly found in eBay, Amazon, Aliexpress and the like for dirt cheap. Simply bolt the plate to your intake using the included hardware and intake side gasket from your intake kit, then bolt your throttle body to the plate with the factory hardware and an OEM gasket.

These throttle bodies are a good diameter match to the FFIM and offer a cleaner drive-by-wire solution than the stock Toyota solution. Will require an aftermarket ECU capable of electronic throttle body control.

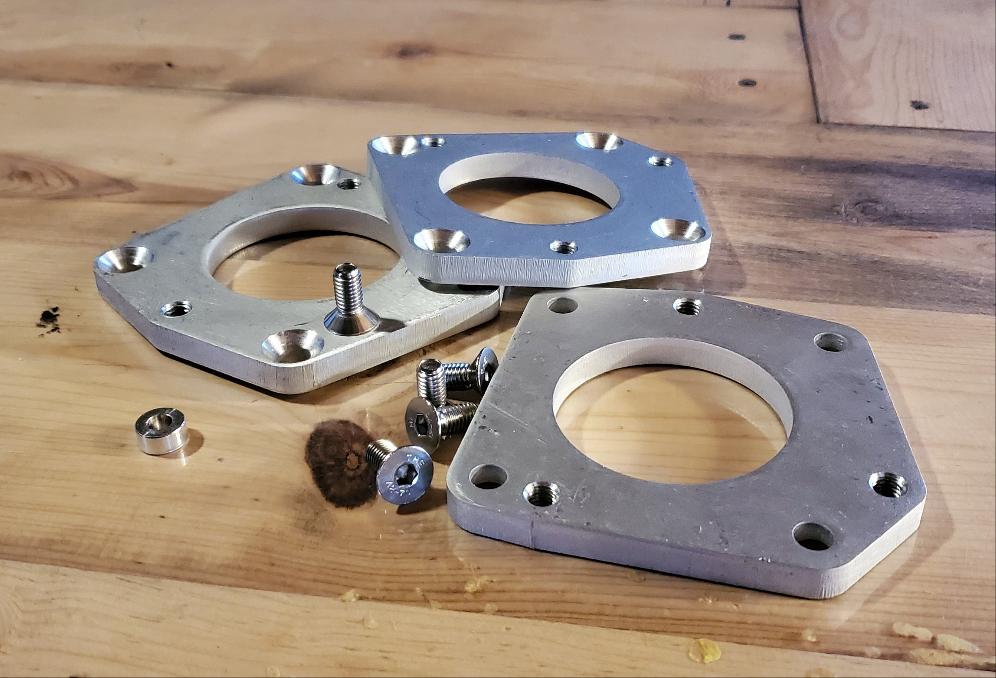

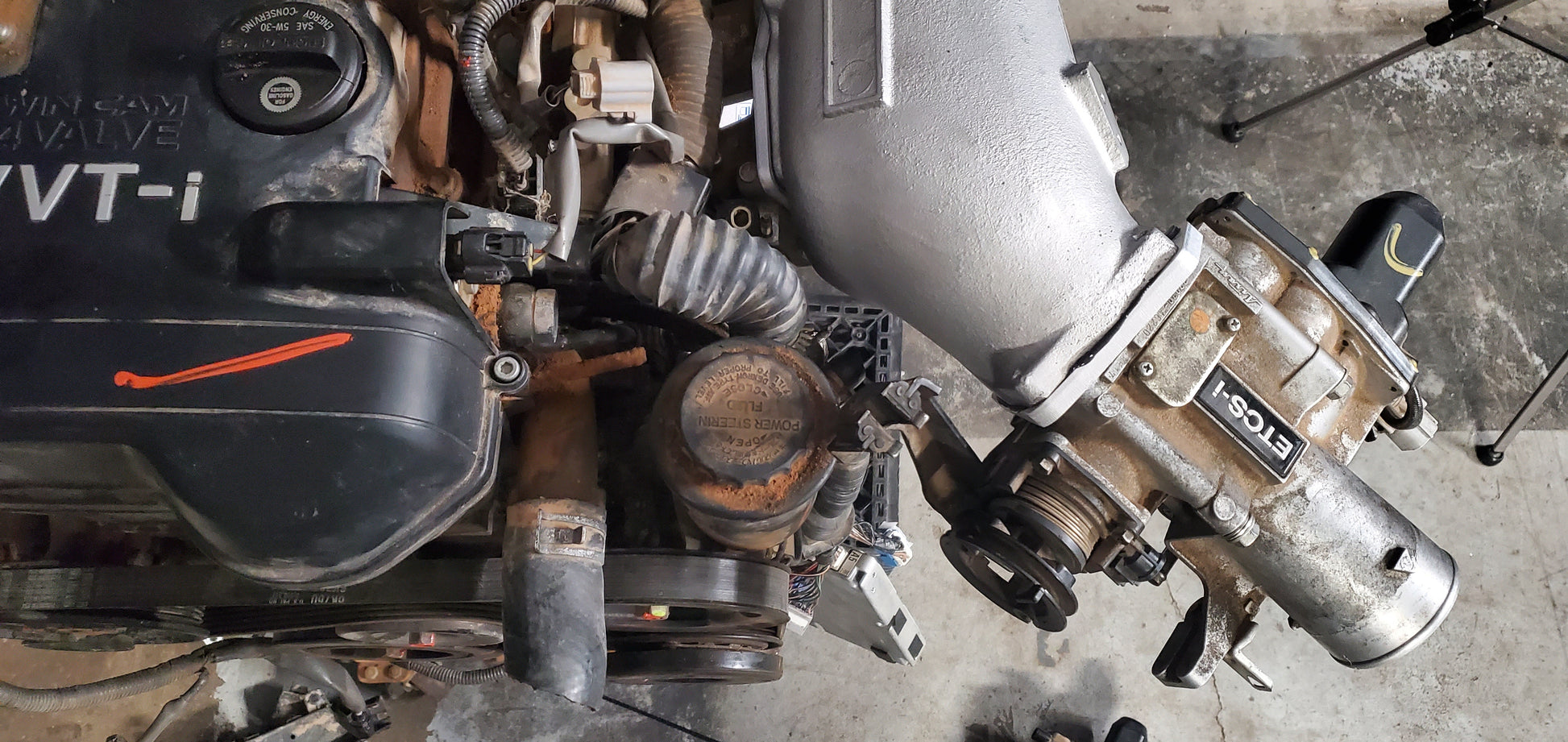

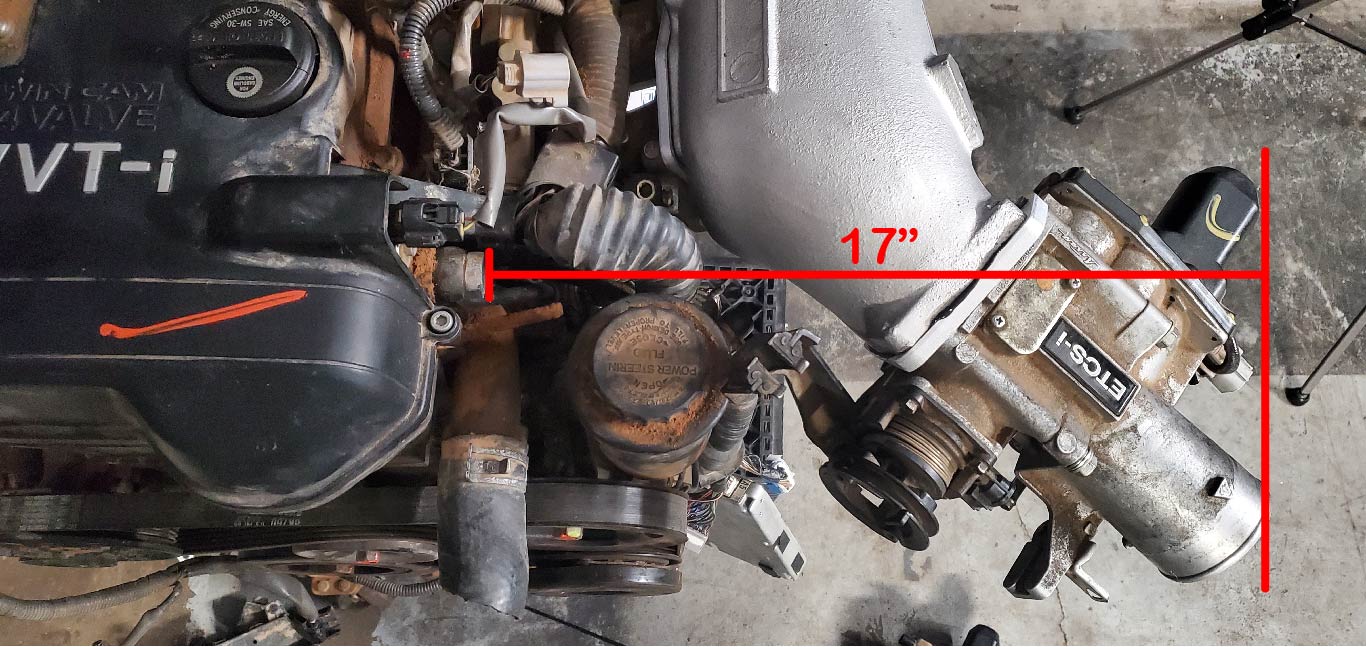

This plate is 3/8" thick and can be beveled to port match or used as supplied. Due to the symmetrical bolt pattern, the throttle body can be rotated in 90 degree increments which may improve clearances for some applications.

Included:

• Adapter plate
• (4) M8 stainless Flat Head Screws

NOT Included

• Intake manifold
• Throttle Body
